Electrical wiring is one of the most fundamental stages in the construction of any building. From small homes to multi-story towers, no space can function without a well-designed and precisely executed electrical system. In fact, wiring can be considered the backbone of a building’s installations, as almost all vital systems—from lighting and ventilation to security and smart systems—depend on it.
Proper electrical wiring not only ensures the functionality of the system but also plays a crucial role in the safety of occupants, energy efficiency, and even the aesthetic appeal of the space. Conversely, the smallest mistake in wiring paths, incorrect switch selection, or failure to comply with safety standards can lead to short circuits, overloads, or even fire hazards.
Among all components, switches serve as the primary interface between the user and the electrical circuit, playing a key role in controlling current and lighting. Understanding the types of switches and how to install them correctly helps both electricians and building owners create a safe, efficient, and reliable system.
From the simple one-way switch to two-way, cross, and smart switches, each type has a specific application and structure that must be correctly integrated into the circuit. In this article, we will provide a step-by-step guide to the most common types of electrical switches, wiring methods, technical and safety tips, and necessary standards to give a comprehensive overview of proper electrical wiring.
Types of Electrical Switches and Their Applications in Buildings
In any electrical system, switches act as intermediaries between humans and electrical circuits. They allow the user to turn on or off the power at the right moment, controlling lighting and electrical devices. Choosing the right type of switch is one of the most important decisions in the design and installation of wiring, as each switch is designed for specific purposes and conditions.
Electrical switches can generally be divided into two main categories:
-
Mechanical or traditional switches – manually operated (e.g., one-way switch, double one-way switch, two-way switch, and cross switch).
-
Electronic or smart switches – in addition to manual operation, they can be controlled via sensors or apps (e.g., timer switch, touch switch, Wi-Fi smart switch).
Here are the most important and widely used types of switches:
1. One-way Switch
The one-way switch is the simplest and most common type of electrical switch, used to turn a single circuit on or off. It is typically used for controlling a lamp, downlight, or an electrical device in a specific location. One-way switches are found in most rooms, bathrooms, and small spaces.
Features:
-
Two terminals (input phase and output to the load)
-
Easy installation with minimal wiring
-
Safe and economical for small spaces

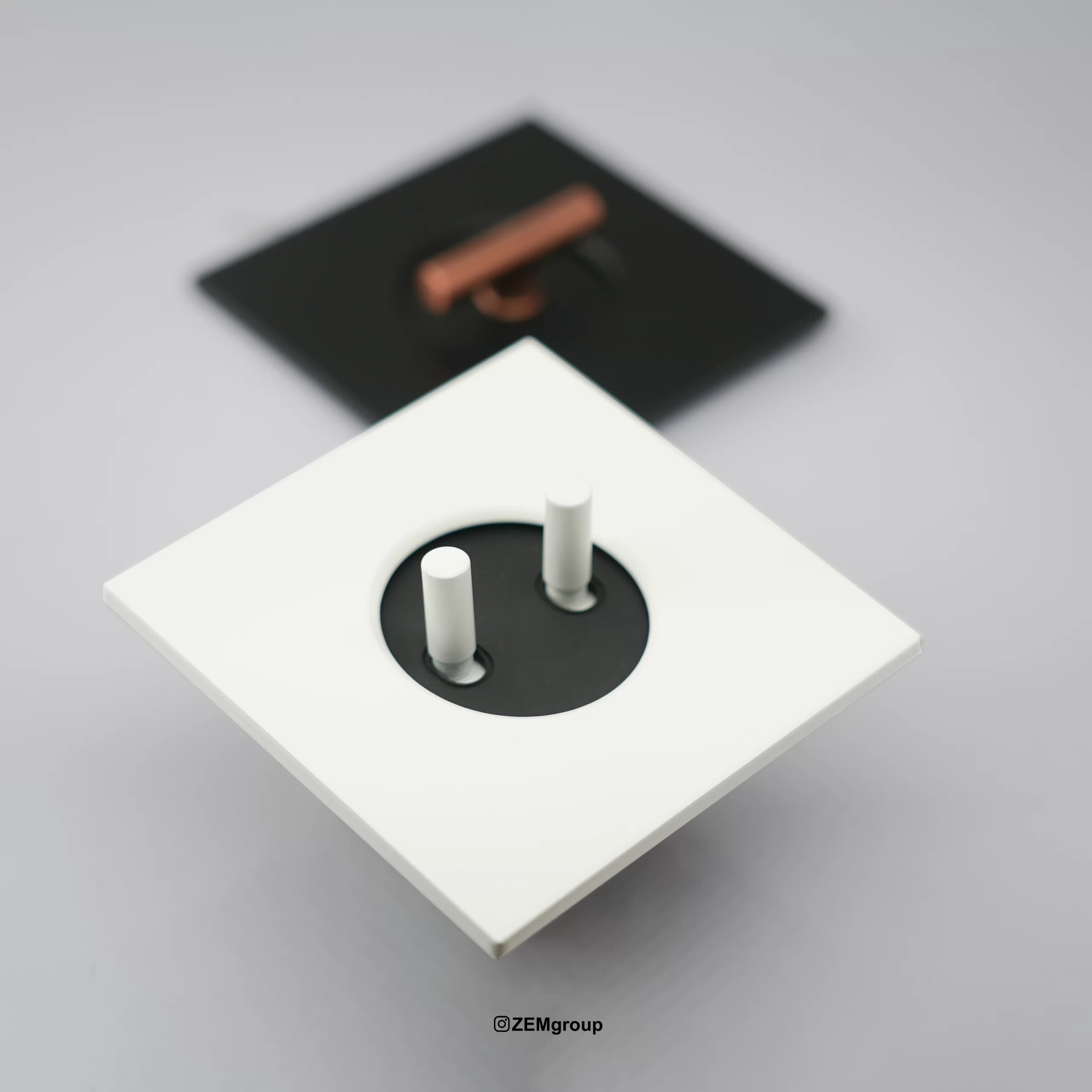

2. Double One-way Switch
The double one-way switch is designed to control two separate circuits from a single point. Essentially, it is two one-way switches in a single frame. It is commonly used to control two lamps or two lighting zones in one room.
Common applications:
-
Large rooms with two light sources
-
Living rooms with separate lighting areas
-
Offices or commercial spaces requiring independent control for each section
3. Two-way Switch
A two-way switch is used when a circuit needs to be controlled from two different locations. For example, in hallways, staircases, or bedrooms with two entrances, you can turn the light on at one switch and off at another.
Applications:
-
Long staircases and corridors
-
Rooms with two entrances
-
Halls with multiple passageways
4. Cross Switch
When you want to control a lamp or circuit from three or more points, a cross switch is used. This switch complements two-way switches and is installed between them.
Applications:
-
Large corridors and conference halls
-
Hotels and office buildings
-
Long paths or multiple-entry areas
5. Timer Switch
A timer switch is a smart switch that automatically turns circuits on and off according to a set schedule. For instance, it can be set to turn off a staircase light automatically after 60 seconds.
Advantages:
-
Energy saving
-
Enhanced safety (especially in public spaces)
-
Suitable for staircases, parking lots, and yards
6. Smart Switch
The smart switch is the most advanced type of switch, integrated with modern technologies. These switches can connect to Wi-Fi or smart home networks and be controlled via mobile apps, voice assistants, or sensors.
Capabilities:
-
Remote control via app
-
Scheduling, scenarios, and lighting automation
-
Integration with smart home systems
Applications:
-
Modern smart homes
-
Luxury hotels and villas
-
Advanced office buildings
When choosing a switch, consider the installation location, number of circuits, current rating, wiring type, aesthetics, and required technology level. Correct selection not only improves performance but also enhances safety and the lifespan of electrical devices.
One-way Switch
The one-way switch is the simplest, most common, and fundamental switch in building wiring. It is responsible for turning on or off a single circuit. Although its operation may seem simple, proper installation of even this basic switch is the foundation of electrical safety in any building.
Structure and Operation:
-
Input terminal (L-IN): for the phase wire from the power source or distribution box
-
Output terminal (L-OUT): for the phase wire to the load (lamp, downlight, or device)
Inside the switch, a simple mechanism connects or disconnects these terminals when pressed, allowing the current to pass in series to the load.
Installation Steps:
-
Turn off power at the main breaker.
-
Prepare the wires – two wires are required: phase input and output to the load.
-
Connect the phase wire to the input terminal (L-IN). Always place the switch in the phase wire, not neutral, to prevent electric shock.
-
Connect the output wire to L-OUT leading to the load.
-
Connect the neutral wire directly from the distribution box to the load; it does not go through the switch.
-
Test the circuit after installation.
Technical and Safety Tips:
-
Use insulated tools
-
Correct switch placement in the phase line
-
Standard height: 110–120 cm from the floor
-
Ensure wire integrity and proper terminal tightening
Common Mistakes:
-
Placing the switch on the neutral wire
-
Loose connections
-
Ignoring color coding
-
Installing at non-standard height or in damp areas
Double One-way Switch
The double one-way switch is essentially two one-way switches in a single frame and allows independent control of two circuits from one point.
Structure:
-
Two separate input terminals for phase wires
-
Two separate output terminals for two loads
Wiring Steps:
-
Turn off power
-
Prepare four wires: two phase inputs and two outputs; neutrals go directly to the loads
-
Connect phase wires to input terminals
-
Connect outputs to respective loads
-
Connect neutral wires directly
-
Test operation
Applications:
-
Large rooms with two independent light sources
-
Living or conference rooms
-
Kitchens with multiple lighting zones
Two-way Switch
The two-way switch allows a lamp to be controlled from two points. Typically used in:
-
Hallways and staircases
-
Rooms with two entrances
-
Large halls
Structure:
-
Two switches with a common terminal and two intermediate terminals
-
Two wires (L1 and L2) between switches
Wiring Steps:
-
Turn off power
-
Connect phase to the common terminal of the first switch
-
Connect intermediate wires between the two switches
-
Connect output from second switch to the load
-
Neutral goes directly to the load
-
Test functionality
Tips and Safety:
-
Always on phase line
-
Use 1.5 mm² wires for intermediate connections
-
Follow color coding (phase: red/brown, neutral: blue, earth: yellow/green)
Cross Switch
A cross switch is used to control a lamp from three or more points, installed between two two-way switches.
Structure:
-
Four terminals: two for input from the first two-way switch, two for output to the second two-way switch
Wiring Steps:
-
Turn off power
-
Install two two-way switches at start and end
-
Install cross switch between them with intermediate connections
-
Neutral wire goes directly to load
-
Test operation
Tips:
-
Switches always on phase line
-
Use at least 1.5 mm² wires for intermediate connections
-
Follow color coding and tighten terminals
-
Test before installing switch covers
Timer and Smart Switches
Timer Switch
-
Automatically turns devices on/off based on schedule
-
Example: staircase light off after 60 seconds
Wiring Steps:
-
Turn off power
-
Connect phase and output wires
-
Connect neutral if required
-
Set timer
-
Test operation
Advantages:
-
Energy saving
-
Improved safety
-
Control for hallways, parking lots, and yards
Smart Switch
-
Remote control via app, voice assistant, or sensors
-
Connects to smart home system
Wiring Steps:
-
Turn off power
-
Connect phase, output, and neutral wires
-
Configure software via app
-
Test operation
Advantages:
-
Modern control
-
Energy saving
-
Automation and lighting scenarios
Frequently Asked Questions
-
What is a one-way switch and its application?
Controls a single circuit from one point. -
Difference between one-way and double one-way switch?
-
One-way: controls one circuit
-
Double one-way: controls two separate circuits from one frame
-
-
How does a two-way switch differ from a one-way switch?
Two-way: controls a circuit from two points; one-way: from one point only -
What is a cross switch and its application?
Controls a lamp from three or more points; installed between two two-way switches -
Does a smart switch require a neutral wire?
Most smart switches need a neutral wire for continuous power and features -
How to set a timer switch?
Adjust on the switch using buttons, digital screen, or app -
Standard installation height of switches?
110–120 cm from the floor -
Should neutral wire connect to the switch?
-
One-way, double one-way, two-way, cross: no
-
Timer and smart switches: usually yes
-
-
Safety tips for installing switches:
-
Always turn off power
-
Install switch on phase line
-
Use quality wires
-
Tighten terminals
-
Test before installing cover
-
-
Difference between smart and regular switch:
Smart: remote control, scheduling, automation
Regular: manual on/off only
